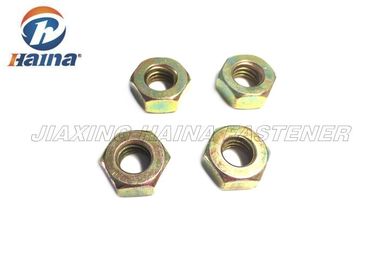

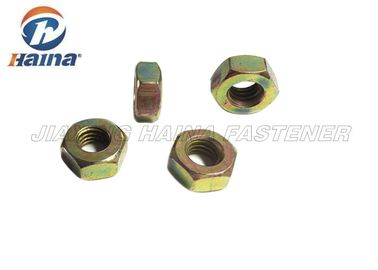

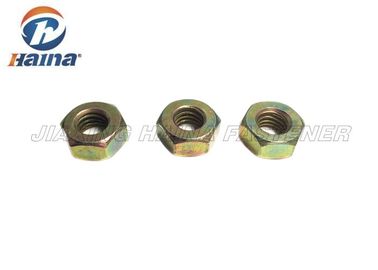

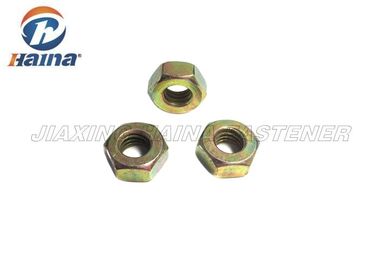

Customized Carbon Steel Nuts Hexagonal Head With Yellow Zinc Finish DIN 934

Customized Carbon Steel Nuts Hexagonal Head With Yellow Zinc Finish DIN 934

    • Customized Carbon Steel Nuts Hexagonal Head With Yellow Zinc Finish DIN 934
    • Customized Carbon Steel Nuts Hexagonal Head With Yellow Zinc Finish DIN 934
    • Customized Carbon Steel Nuts Hexagonal Head With Yellow Zinc Finish DIN 934
    • Customized Carbon Steel Nuts Hexagonal Head With Yellow Zinc Finish DIN 934
  • Customized Carbon Steel Nuts Hexagonal Head With Yellow Zinc Finish DIN 934

    Thông tin chi tiết sản phẩm:

    Place of Origin: CN
    Hàng hiệu: HNF
    Chứng nhận: ISO9001:2008
    Model Number: M4-M56 3/16"-3"

    Thanh toán:

    Minimum Order Quantity: 500 kg
    Giá bán: Negotiation
    Packaging Details: Common export packing. Cartons+Pallets, or customized packing. Bag Packing
    Delivery Time: 10-20 days
    Payment Terms: L/C, T/T, Western Union, Paypal
    Supply Ability: 500 tons per month
    Liên hệ với bây giờ
    Chi tiết sản phẩm
    Product: Hex Head Nut Head Drive: Hexagonal
    Standard: DIN934 ASTM A194 DIN ANSI JIS Bsw Surface: Yellow Zinc Finished
    Material: Alloy Steel Carbon steel Head: Hex Head
    HS Code: 731816 Inspection: 100%QC Steps Inspect Before Shipment
    Connection: Common nut



    Carbon Steel Alloy Steel DIN934 ASTM A194 GR 2H M4-M56 3/16"-3" or Customize Zinc Plated Hex Head Nut

    Description:


    Hex Head Nut play the role of a component of all manufacturing machinery. It fastener other components. There are kinds of nut. We have common national standard, German standard, the British standard, American Standard, the subject of the nut. There are many kinds of lock nut. Hex Head Nut is very common.

    Nut fastener bolt or screw together, so it plays the role of part A in the original all manufacturing machinery must be used. Nut species variety, we have common national standard, British standard, American standard, Japanese subject nut . According to different materials, the nuts can be divided into carbon steel, high strength steel, stainless steel, steel and other major types of product attributes corresponding to countries with different standards numbers are divided into ordinary, non-standard, (old) GB, the new national standard, American , English, German standard. Different sizes, ranging from threads into different specifications. Generally GB, German standard represented by M (for example, M8, M16), American, British is expressed as a fraction or # specifications (such as # 8, # 10, 1 / 4,3 / 8) fasteners, nuts are parts of machinery and equipment will be closely linked through threaded inside, the same size nuts and screws, to connect together, for example, only M4-0.7 nut and the screw with M4-0.7 of ( in nut, M4 refers to the inner diameter of the nut is about 4mm, 0.7 refers to the distance between the two screw thread 0.7mm); US-made products also, for example, 1 / 4-20 screw and nut only 1 / 4-20 with (1/4 refers to the inner diameter of approximately 0.25 inch nut, 20 refers to every inch, 20 teeth).



    Specification:



    Item Carbon Steel Alloy Steel DIN934 ASTM A194 GR 2H M4-M56 3/16"-3" or Customize Hex Head Nut
    size M4-M56 3/16"-3"
    Material Available 1. Steel:C45(K1045), C46(K1046),C20
    2. Stainless Steel: SUS304, SUS316
    Surface treatment Zinc plated, passivate, Chrome plated, Electro plating, Black, Plain
    Heat treatment Tempering, Hardening, Spheroidizing
    Tolerance 6g
    Packing Plastic bags + carton box + pallet
    Lead time About 15-25 days. Reality time is according to customer's requirement
    Address Jiaxing, China



    Nominal hole Pitch, Across flats, External diameter; Height, H (mm)
    diameter, D(mm) P (mm) A/F (mm) across corners,
    1st 2nd Coarse Fine ISO DIN JIS A/C (mm) Hex nut Jam nut Nylon nut
    choice choice
    1   0.25   2.5
    1.2   0.25
      1.4 0.3
    1.6   0.35   3.2
      1.8 0.35
    2   0.4   4       1.6 1.2 -
    2.5   0.45   5       2 1.6 -
    3   0.5   5.5     6.4 2.4 1.8 4
      3.5 0.6   6
    4   0.7   7 7 7 8.1 3.2 2.2 5
    5   0.8   8 8 8 9.2 4 2.7 5
    6   1 0.75 10 10 10 11.5 5 3.2 6
      7 1     11     5.5 3.5 -
    8   1.25 1 13 13 12 15 6.5 4 8
    10   1.5 1.25 or 1 16 17 14 19.6 8 5 10
    12   1.75 1.5 or 1.25 18 19 17 22.1 10 6 12
      14 2 1.5 21 22 19   11 7 14
    16   2 1.5 24 24 22 27.7 13 8 16
      18 2.5 2 or 1.5   27     15 9 18.5
    20   2.5 2 or 1.5 30 30   34.6 16 10 20
      22 2.5 2 or 1.5 32
    24   3 2 36     41.6 19
      27 3 2 41
    30   3.5 2 46     53.1 24
      33 3.5 2
    36   4 3 55     63.5 29
      39 4 3
    42   4.5 3
      45 4.5 3
    48   5 3
      52 5 4
    56   5.5 4
      60 5.5 4
    64   6 4



    Application:

    Hex Head Nut is most common in usage, which is mainly used for fastener one thing by the nuts. And it has requirement of the torque, and we will control the torque for customers.



    Advantages:


    1. Over 6 years of manufactiring experience
    2. Many kinds of stock
    3. Competitive price
    4. Quality control system

    5. Sample available

    6. Professional Workers
    7. OEM workable
