Carbon Steel / Stainless Steel Machine Screws Singlem Thread DIN914 M3 - M8

Carbon Steel / Stainless Steel Machine Screws Singlem Thread DIN914 M3 - M8

    • Carbon Steel / Stainless Steel Machine Screws Singlem Thread DIN914 M3 - M8
    • Carbon Steel / Stainless Steel Machine Screws Singlem Thread DIN914 M3 - M8
    • Carbon Steel / Stainless Steel Machine Screws Singlem Thread DIN914 M3 - M8
    • Carbon Steel / Stainless Steel Machine Screws Singlem Thread DIN914 M3 - M8
  • Carbon Steel / Stainless Steel Machine Screws Singlem Thread DIN914 M3 - M8

    Thông tin chi tiết sản phẩm:

    Place of Origin: China
    Hàng hiệu: HNF
    Chứng nhận: ISO9001
    Model Number: M3-M8

    Thanh toán:

    Minimum Order Quantity: 30000 pcs
    Giá bán: Negotiation
    Packaging Details: Small Box+Carton+Pallet
    Delivery Time: 15-20 days
    Payment Terms: L/C, T/T, Western Union
    Supply Ability: 400ton per month
    Liên hệ với bây giờ
    Chi tiết sản phẩm
    Screw Head Type: hex socket Surface Finishing: plain
    Size: M3-M8 Class: A2 A4 304/316
    Sample: For Free HS Code: 73181400
    Alias: Allen screw Thread line: single line

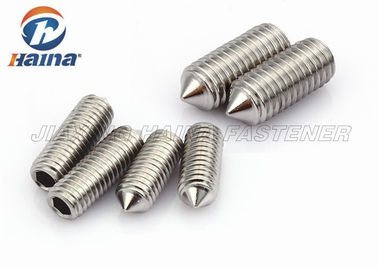

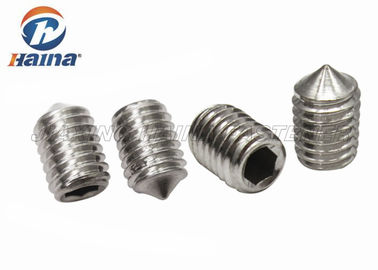

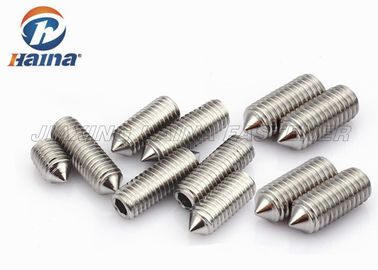

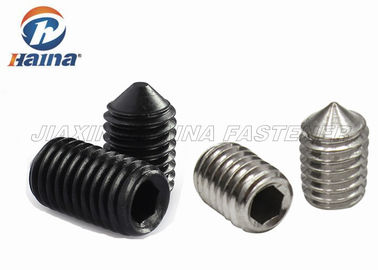

    Product: Stainless Steel / Carbon Steel DIN914 Hex socket Allen set screws with cone point

    Stainless Steel / Carbon Steel DIN914 Hex socket Allen set screws with cone point



    Description:

    A set screw is one type of hardware designed to fasten one object inside of another. a screw for adjusting or clamping parts of a machine.The set screws prevents relative movement between the two objects, which allows each to function as intended. These screws are generally made from carbon steel , brass or stainless steel, and are designed to pass through the outer object and rest against the inner object without passing through.

    A set screw is a unit of hardware designed to fasten one object inside of another. The set screw prevents relative movement between the two objects, which allows each to function as intended.

    Point Selection should take in account application, holding power, frequency of setting and hardness of mating parts. The Cup Point digs part into the contact surface for maximum holding power under pressure.For longer life, set screws are usually made of alloy steel and case hardened. Hardened set screws often leave a plastic deformation, in the form of a circular or semicircular mark, in the shaft that the screw sets against. This has both pros and cons.Set screws are generally fastened using an internal mechanism rather than a traditional external head. At the top of the screw may be slotted for use with a screwdriver, or may have a hexagonal shape.

    In some countries, this type of fastening device is generally known as a Grub screw rather than a set screw


    Chemical Components:



    Material C Si Mn P S Ni Cr Mo Other
    201 0.15 1 5.5-7.5 0.06 0.03 3.5-5.5 16-18   N≤0.25
    304 0.08 1 2 0.045 0.03 8.0-10.0 18-20
    304L 0.03 1 2 0.045 0.03 8.0-12.0 18-20
    321 0.08 1 2 0.045 0.03 8.0-13.0 17-19   Ti≤5*C%
    316 0.08 1 2 0.045 0.03 10.0-14.0 16-18 2-3
    316L 0.03 1 2 0.045 0.03 10.0-15.0 16-18 2-3
    309S 0.08 1 2 0.045 0.03 12.0-15.0 22-24
    410 0.15   1   0.03 - 11.5-13.5


    Specification:


    Screw Thickness M3-M8
    Finish Plain
    Material Stainless steel
    Class SS304/ SS316
    Standard DIN913
    Screw Thread Pitch 1.25
    Thread Style Coarse
    Screw Length (Millimeters) 10-20
    Drive Allen Type
    Point Type Cup-point
    Use Location Interior/Exterior
    Materials Fastened Metal to metal
    Finish Plain
    Material Stainless steel




    Related Product:

    DIN551,DIN553,DIN926,DIN438,DIN913,DIN914,DIN915,DIN916,DIN478, DIN479,DIN561,DIN564,DIN922,DIN94,DIN925,DIN6332,

    Carbon Steel / Stainless Steel Machine Screws Singlem Thread DIN914 M3 - M8


    Advantages:

    1) Prompt delivery

    2) High quality in competitive price
    3) Various types of long- term supply professinal stainless steel screws
